High-Level Overview & Drill-Down

Based on Endsley & Jones’ Designing for Situation Awareness: An Approach to User-Centered Design, this pattern emphasizes keeping a high-level picture always visible, while enabling operators to drill down into details only when needed.

What This Pattern Is

This design pattern balances overview and detail. Operators maintain global SA from a central display, but can open contextual panes or detail views when more information is required. This prevents clutter while keeping high-level status always in sight.

  • The overview map/dashboard shows system-wide state at a glance.
  • Clicking or selecting elements opens detail panes (e.g., trends, task info, video feeds) only when needed.
  • Operators can prioritize attention by filtering or drilling down without losing context of the big picture.

Benefits

  • Supports global SA — operators always keep sight of the system overview.
  • Minimizes clutter — details only appear when requested, reducing visual overload.
  • Enhances comprehension — details are linked directly to overview elements, supporting Level 2 SA (understanding).
  • Improves response — operators can dive deeper without breaking context, reducing time to act.

Pattern Demonstration

The following demonstration illustrates this pattern applied to a pipeline network monitoring dashboard. Operators view a high-level map of the system, while detail panes (trends, alarms, tasks, video feeds) appear only when needed — keeping global SA intact.

🎥 Demonstration Video

📷 Dashboard Examples

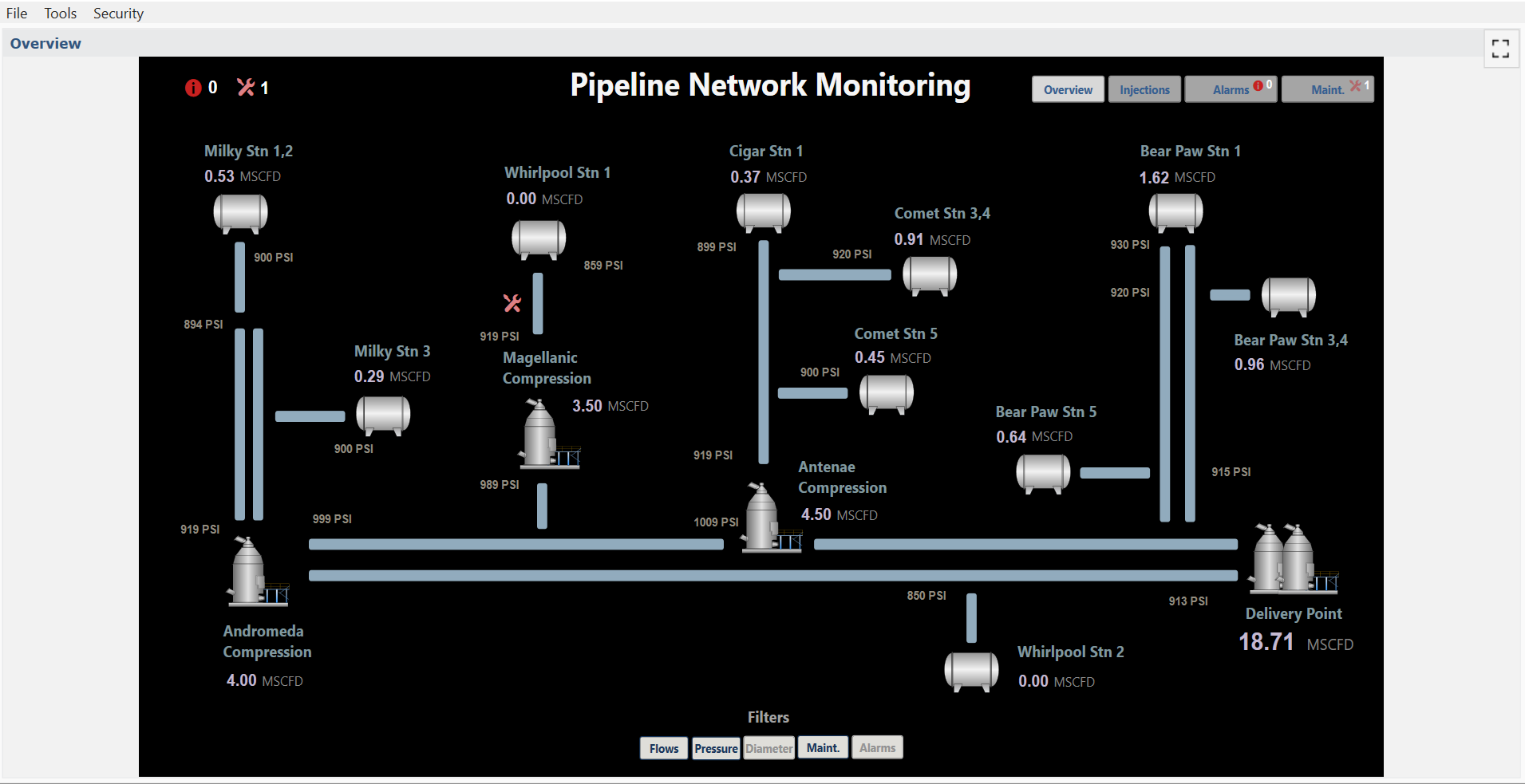

  • Overview: System-wide state always visible. This supports global Situation Awareness.
    Pipeline network monitoring overview

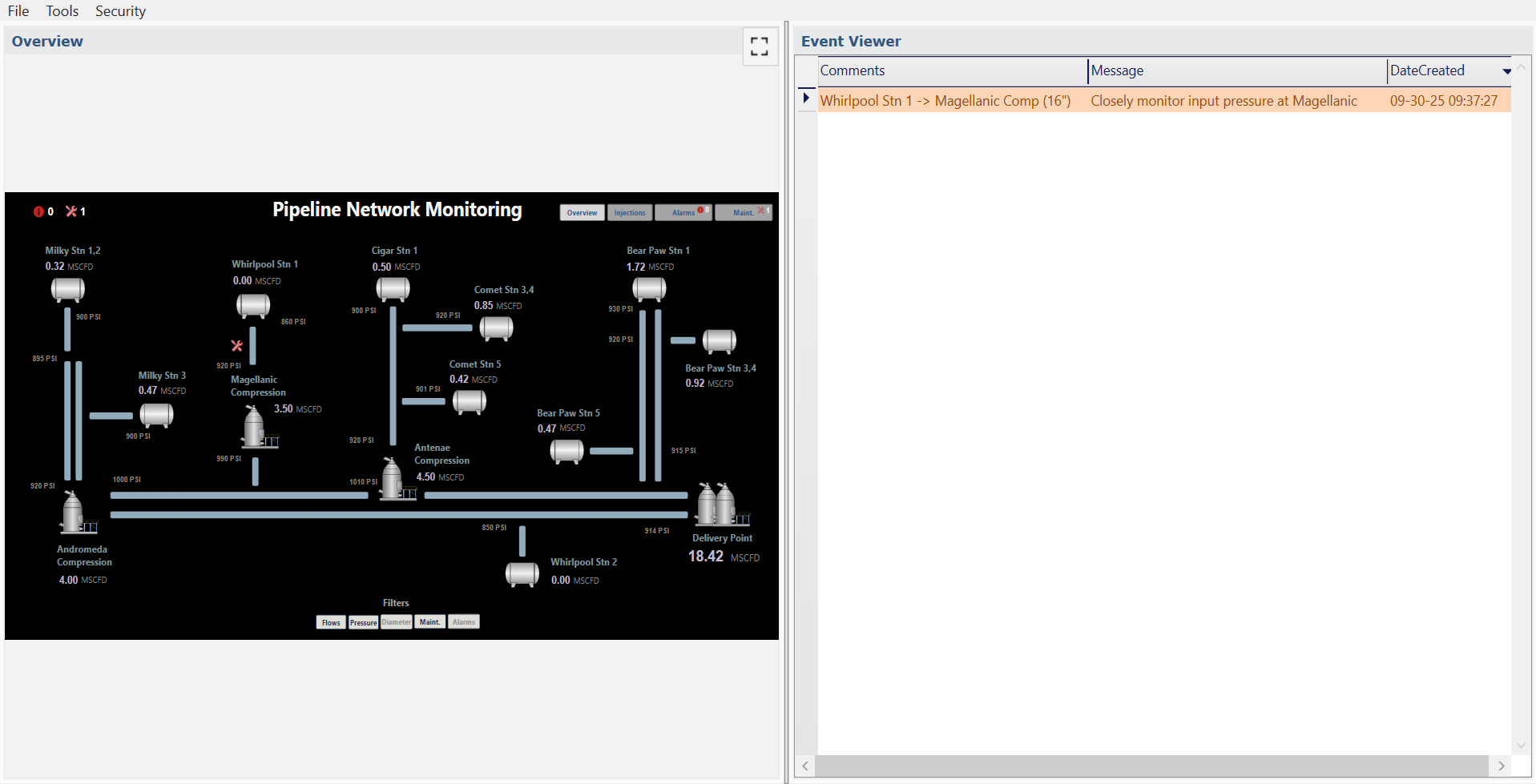

  • Event-Linked Pane: Event viewer opens alongside the overview. In this example, the operator reviews high-level information about a maintenance event highlighted on the map.
    Alarm viewer drill-down example

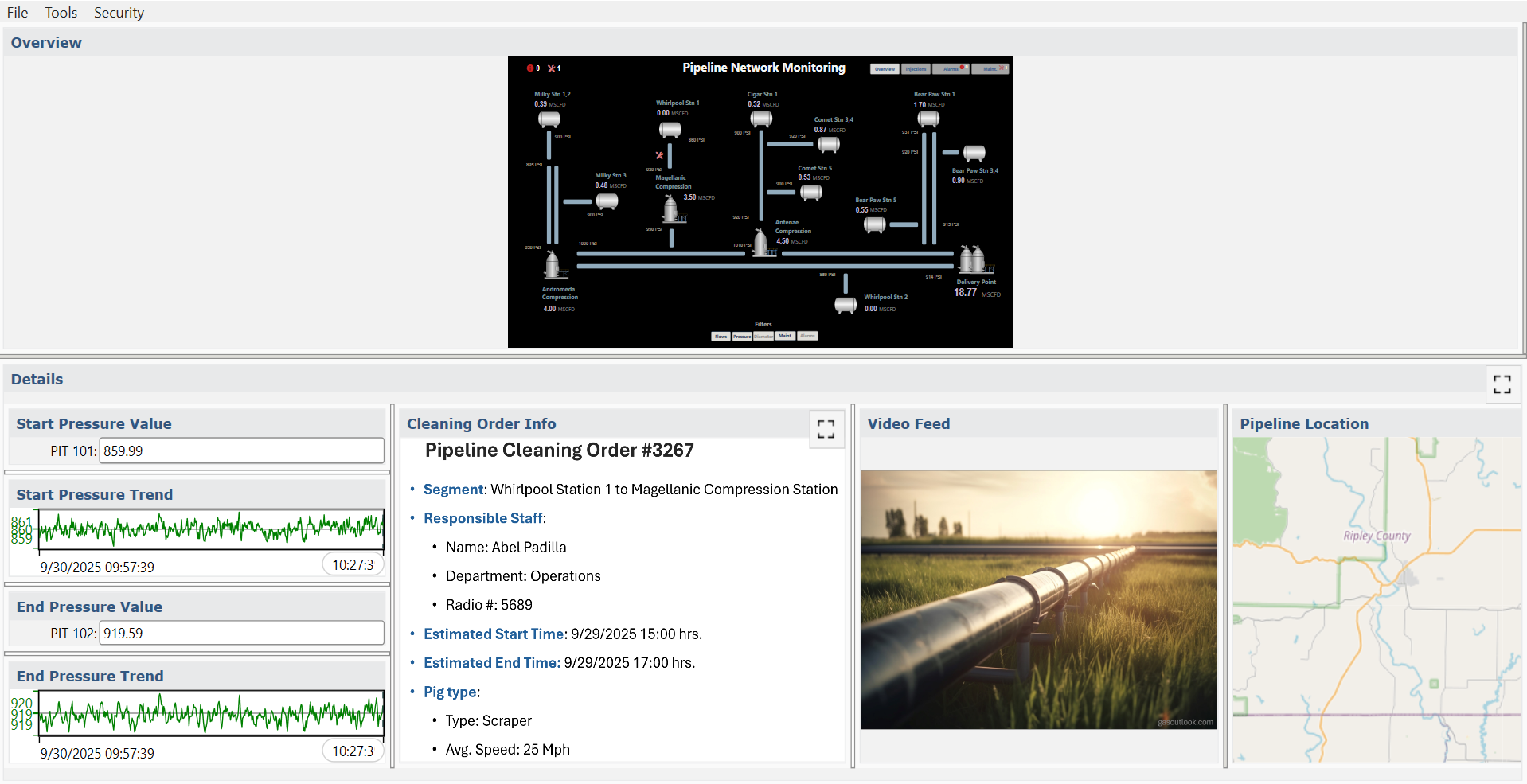

  • Rich Detail View: Drill-down adds trends, work orders, video, and maps. The operator can expand awareness of the maintenance event when deeper context is needed.
    Rich detail view with trends and work orders

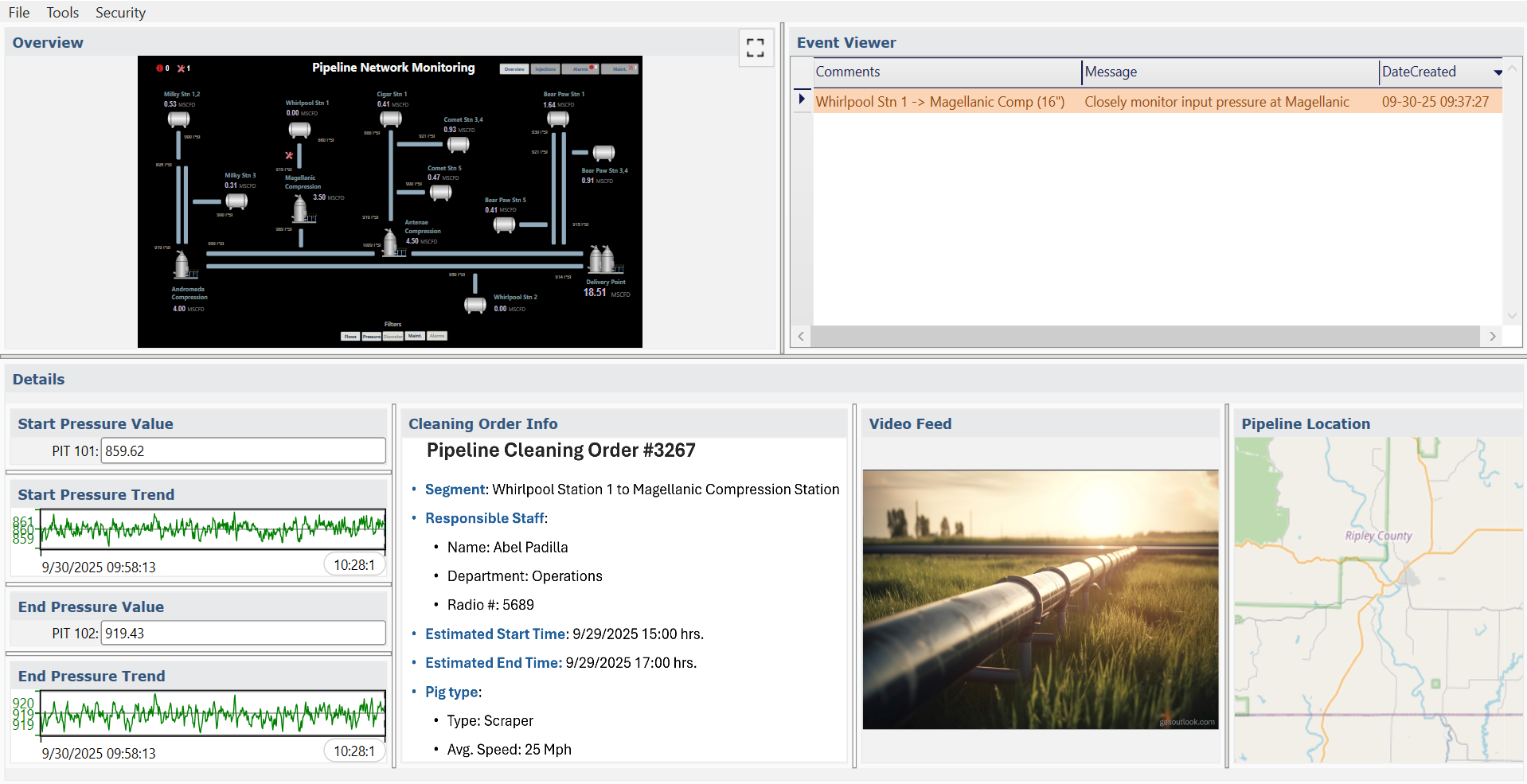

  • Configured Full Drill-Down: All panes expanded. The operator can view overview, high-level, and detailed information simultaneously to support decision-making.
    Full drill-down view with detailed panes

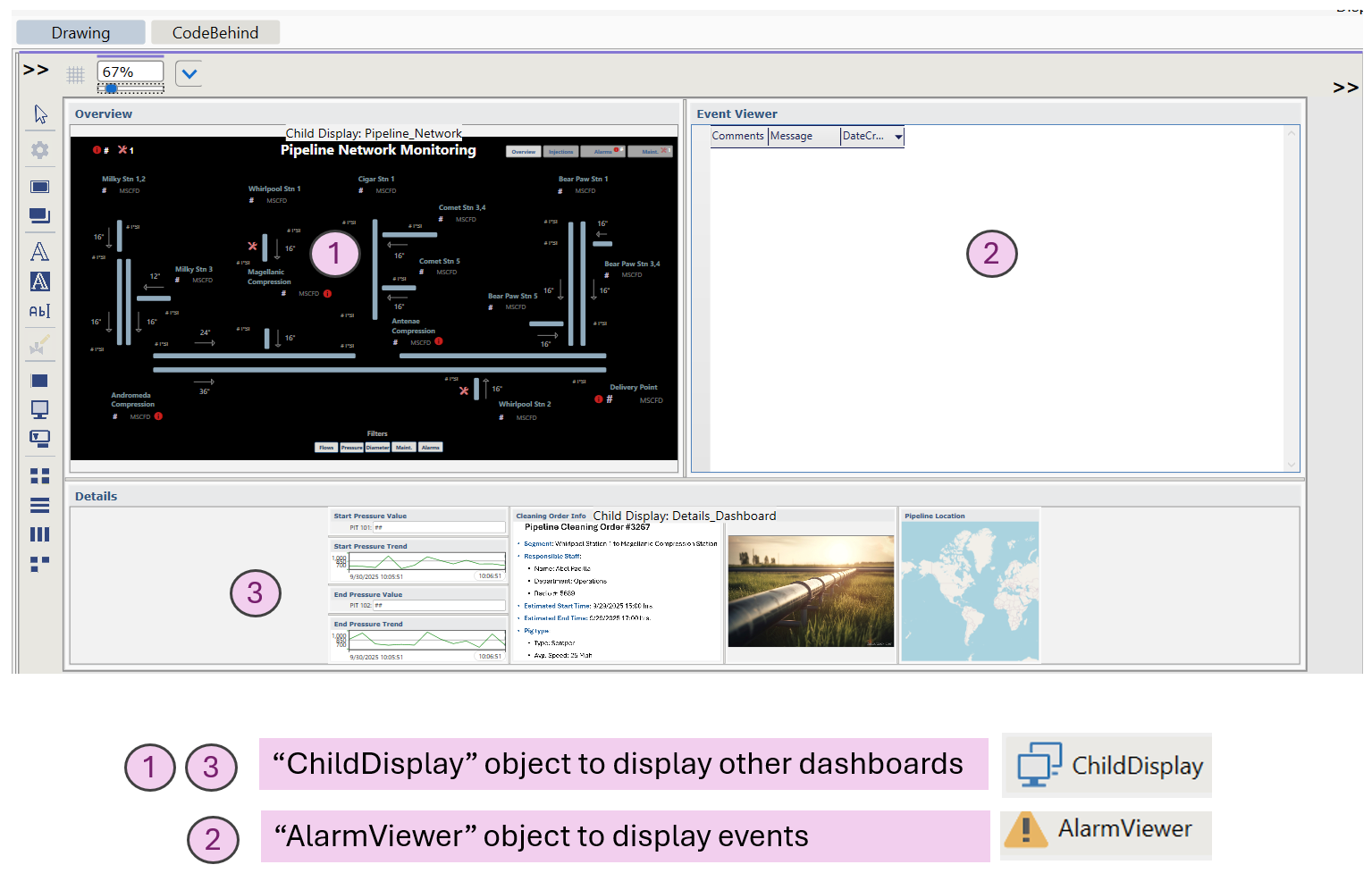

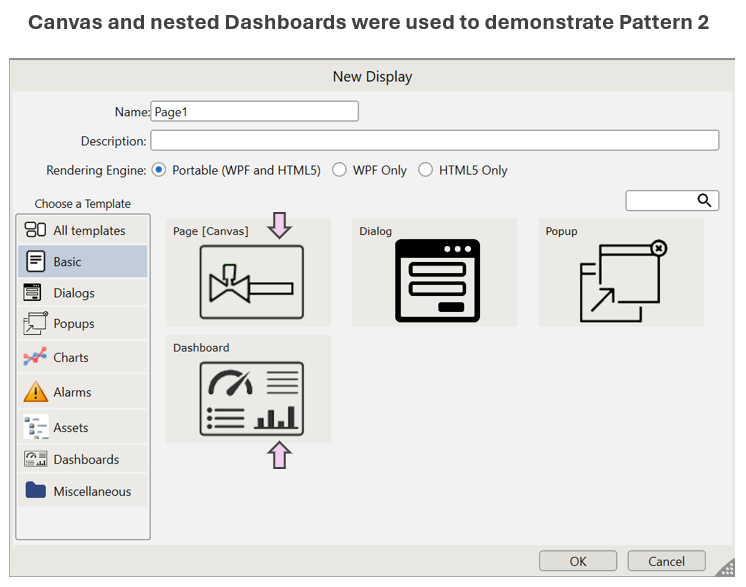

  • Key Panes Configuration: The dashboard is composed of multiple building blocks. The overview drawing was created in a Canvas display, while separate Dashboard displays hold the Events Table and the Details Pane. A third dashboard integrates them into a single view.
    Dashboard choice configuration Schema 2 dashboard configuration

Implementation Notes

  • The demonstration dashboard did not include functionality to click on the maintenance icon and automatically sync content across all other panes (Event Viewer, Details). Implementing this would require additional development, as seen in the Tatsoft Demo project. For Design Pattern illustration purposes, this functionality was not deemed necessary.
  • In the Details pane, the "Video Feed" is represented by a static image. Completing this would require further configuration, but was not necessary to demonstrate the concept of this Design Pattern.

Reference: Mica R. Endsley & Debra G. Jones, Designing for Situation Awareness: An Approach to User-Centered Design. Pattern adapted for demonstration in Clear Picture SA.
